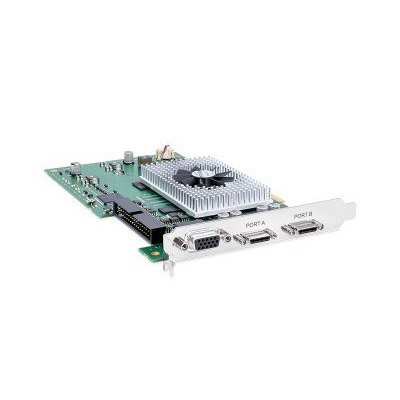

設備功能

處理器

Vision Processor

板載內存

2 GByte DDR3-RAM

通過接口供電（每個端口）

PoCL (4W/12V per cable, Safe Power)

相機接口

標準

Camera Link 2.0

接口

Camera Link

配置

CL-deca (80bit), CL-full, CL-dual base, CL-base, CL-medium

芯片類型

Grayscale sensor, CFA sensor (Bayer), RGB sensor

數據帶寬（每個端口；總計）

6,8 Gbps; 6,8 Gbps (850 MB/s)

端口數

2

測試環境

Camera Simulator

主機PC接口

PC總線接口

PCIe 2.1 x4, DMA1800

控件和通用I/O

板載GPIO接口

One 34-pin flat cable connector onboard: 4 opto-coupled inputs (4,5V - 28V), optional 2 opto-coupled differential inputs (RS422), 4 opto-coupled outputs (4,5V - 28V), Shaft encoder input, programmable rescaler, multiple-camera synchronization

板載前端GPIO接口

optional (conf.): 4 opto-coupled Inputs (4,5V - 28V) with up to 1 MHz frequency, 2 TTL outputs, up to 20 MHz frequency, One 15-pin D-Sub socket: 2 opto-coupled differential inputs (RS422) and 1 opto-coupled differential / single ended input

GPIO接口概述

onboard: 8in/8out (max.), TTL or opto-coupled, Front GPIO: up to 3 differential signals in, up to 4 single-ended signals in (depends on configuration), 2 TTL outputs

處理功能

基本功能

Tap Sorting (Sensor Readout Correction), Offset/Gain/Gamma correction, Invert, ROI, Image Selector, LUT, Mirroring

物理和環境信息

合規

WEEE, REACH, RoHS

軟件

軟件驅動程序

Windows 11 / 10 (64-Bit), Windows 11 / 10 (32-Bit), Linux 64-Bit

軟件工具

Device Drivers, SDK, GenICam Explorer (Camera configuration tool), microDisplay (Acquisition control and viewer), Documentation

軟件API

.net interface

FPGA編程

VisualApplets

BV-軟件兼容性

Halcon, Labview, others on request, Cognex
